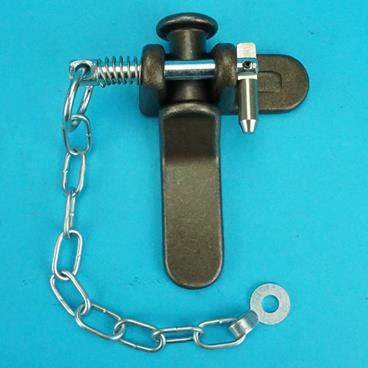

FORKET LUG with SWIVEL SPRING COTTER PIN

Tailboard Forket & Lug with Spring Loaded Swivel Cotter Pin

Product Ref: PIK-5179/68/10SW

Unit of issue: Single Unit

Bulk Options

Quantity	1+	2+	4+	10+
Price per unit	£17.75 inc VAT £14.79 ex VAT	£17.00 inc VAT £14.17 ex VAT	£16.00 inc VAT £13.33 ex VAT	£14.75 inc VAT £12.29 ex VAT

Description

Tailboard Forket & Lug with Spring Loaded Cotter Pin

Self coloured heavy duty weld-on steel forket set for tailgate and drop side trailers and pick-ups etc.

Forket -

Overall length 93mm x width 33mm
10mm dia. hole for cotter pin
22mm distance between the forks

Lug -

overall length 137mm x width 33mm
20mm dia x 32mm length

Pin -

Overall length - 113mm
Length from under collar to the pivot 63mm
Pin dia. 9.5mm
Zinc plated sword pin with a 304 stainless steel tip.
Fitted with a 191mm (7.5") chain and a Darlaston washer.
